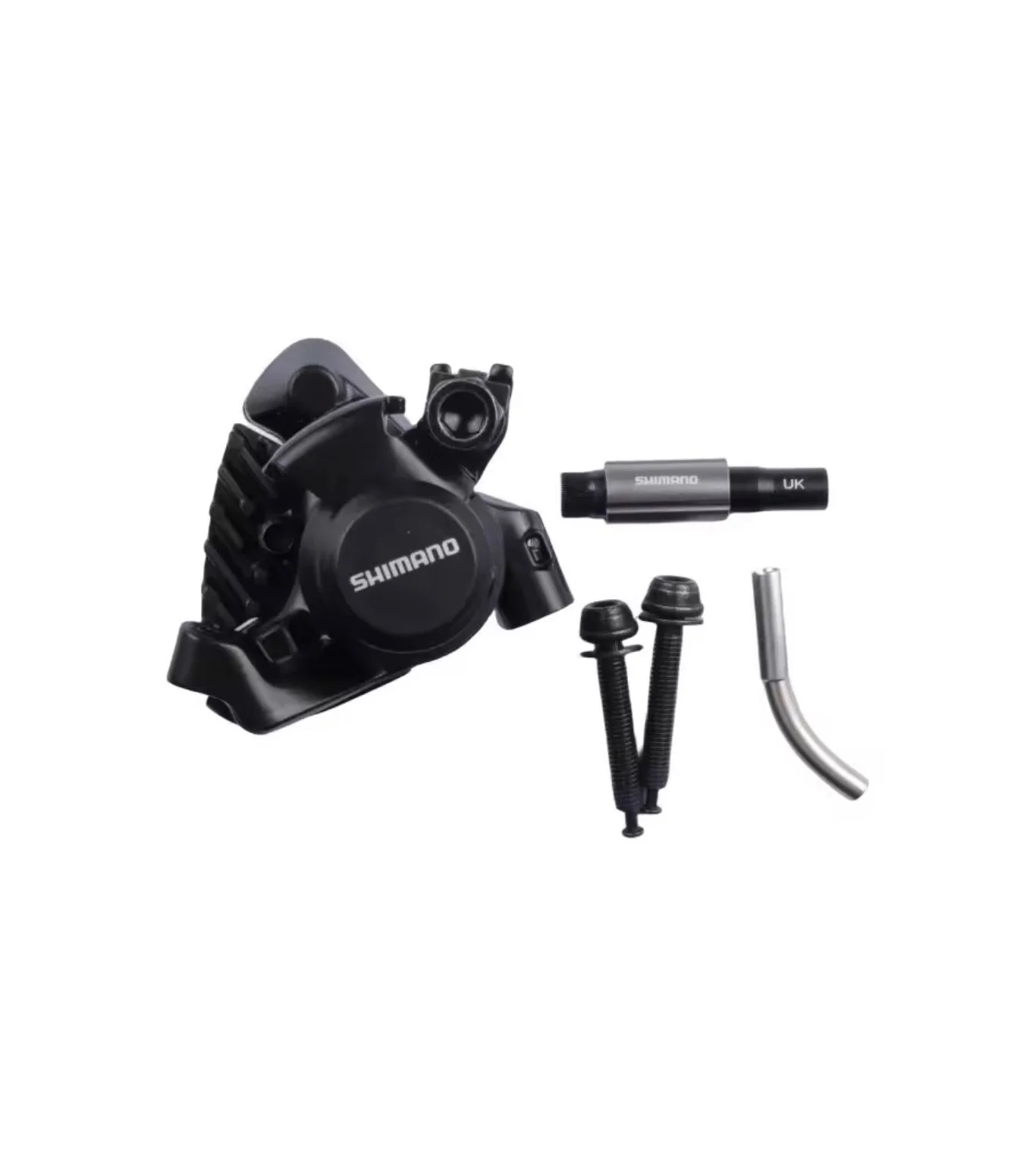

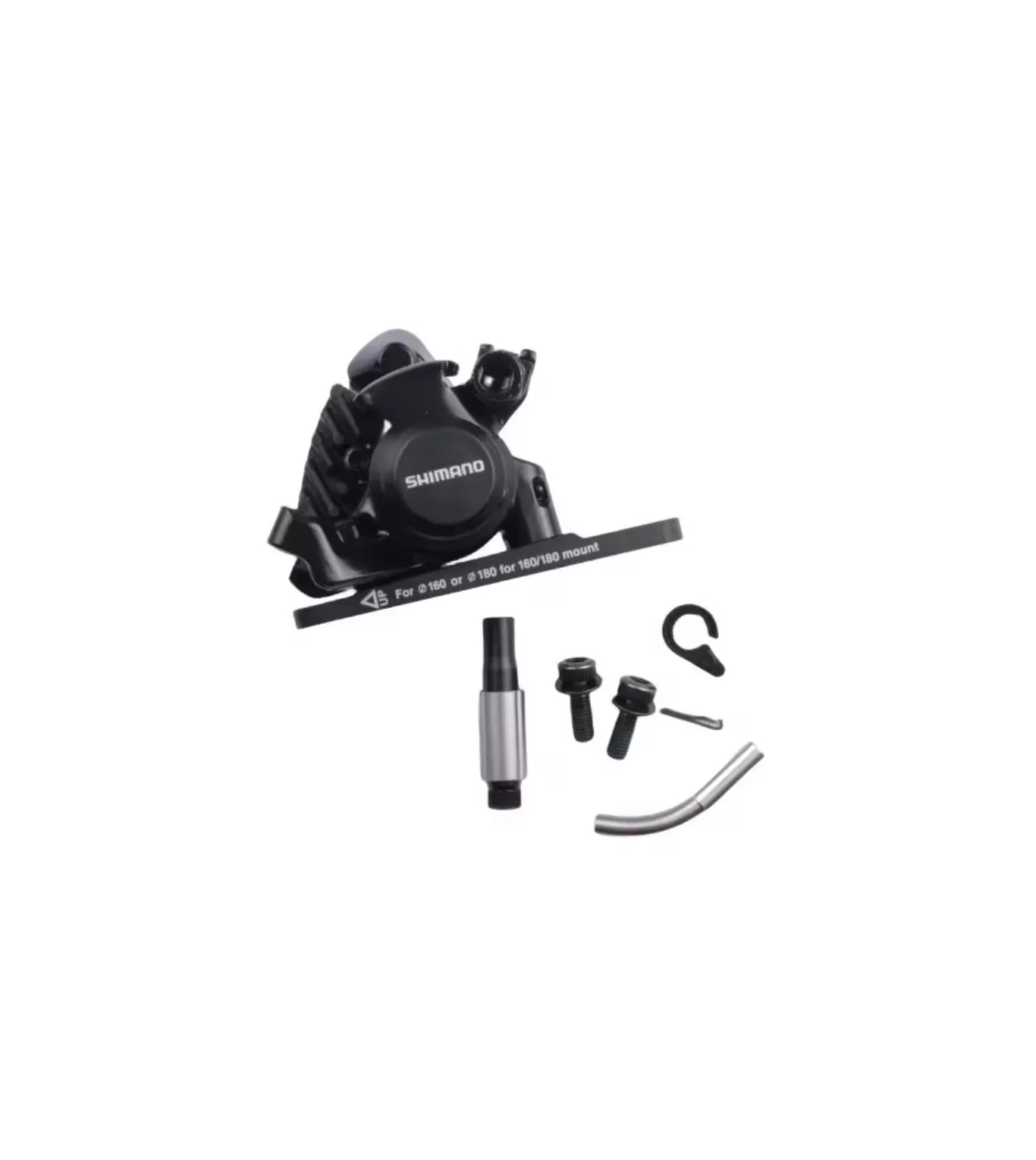

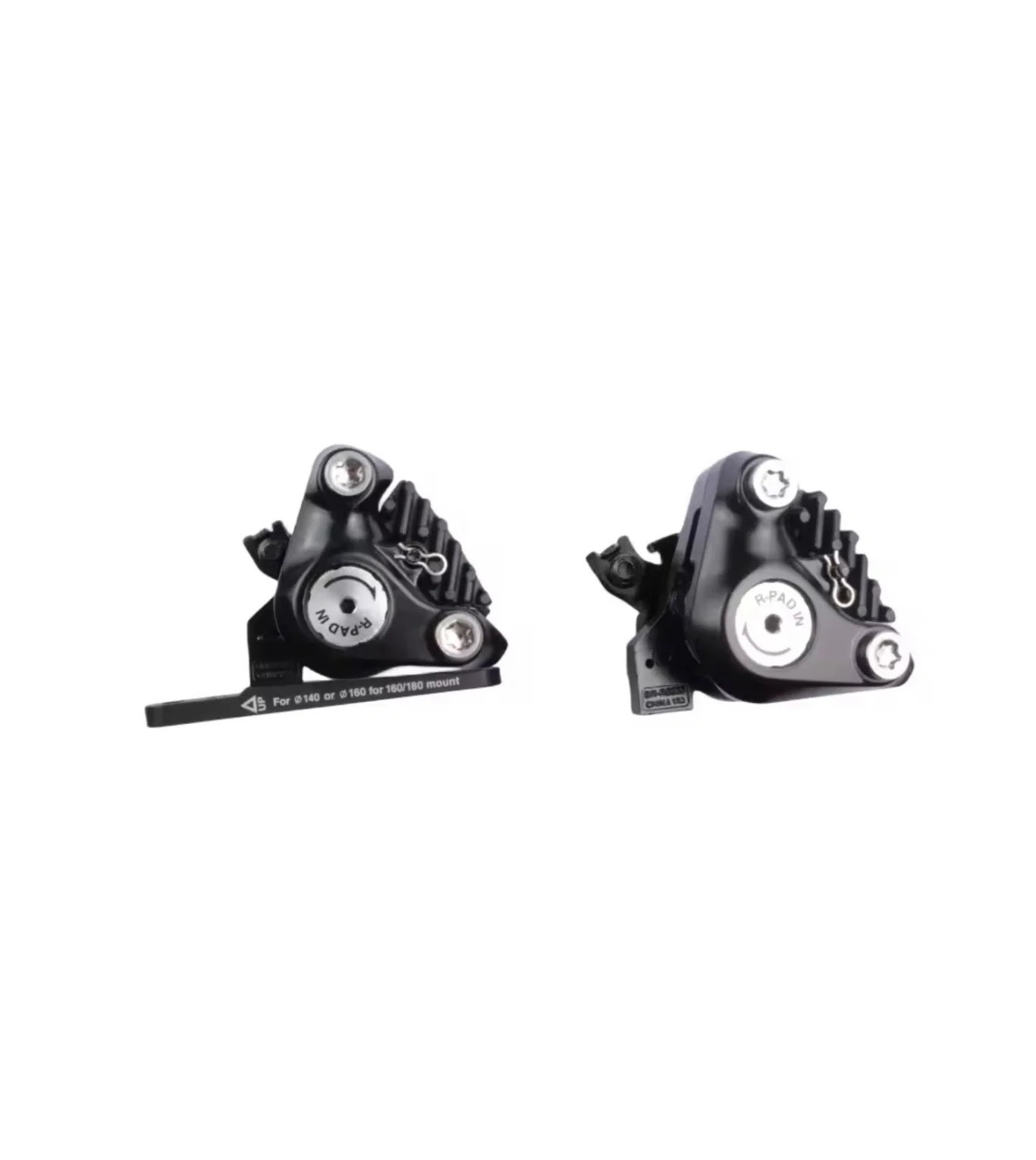

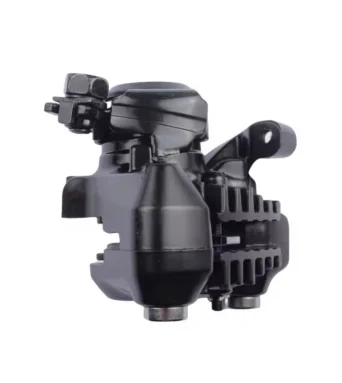

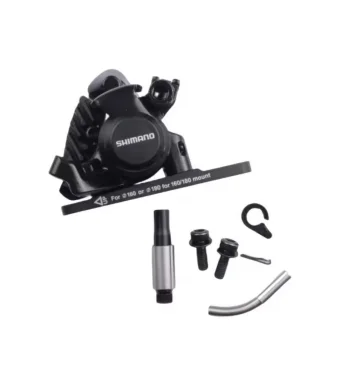

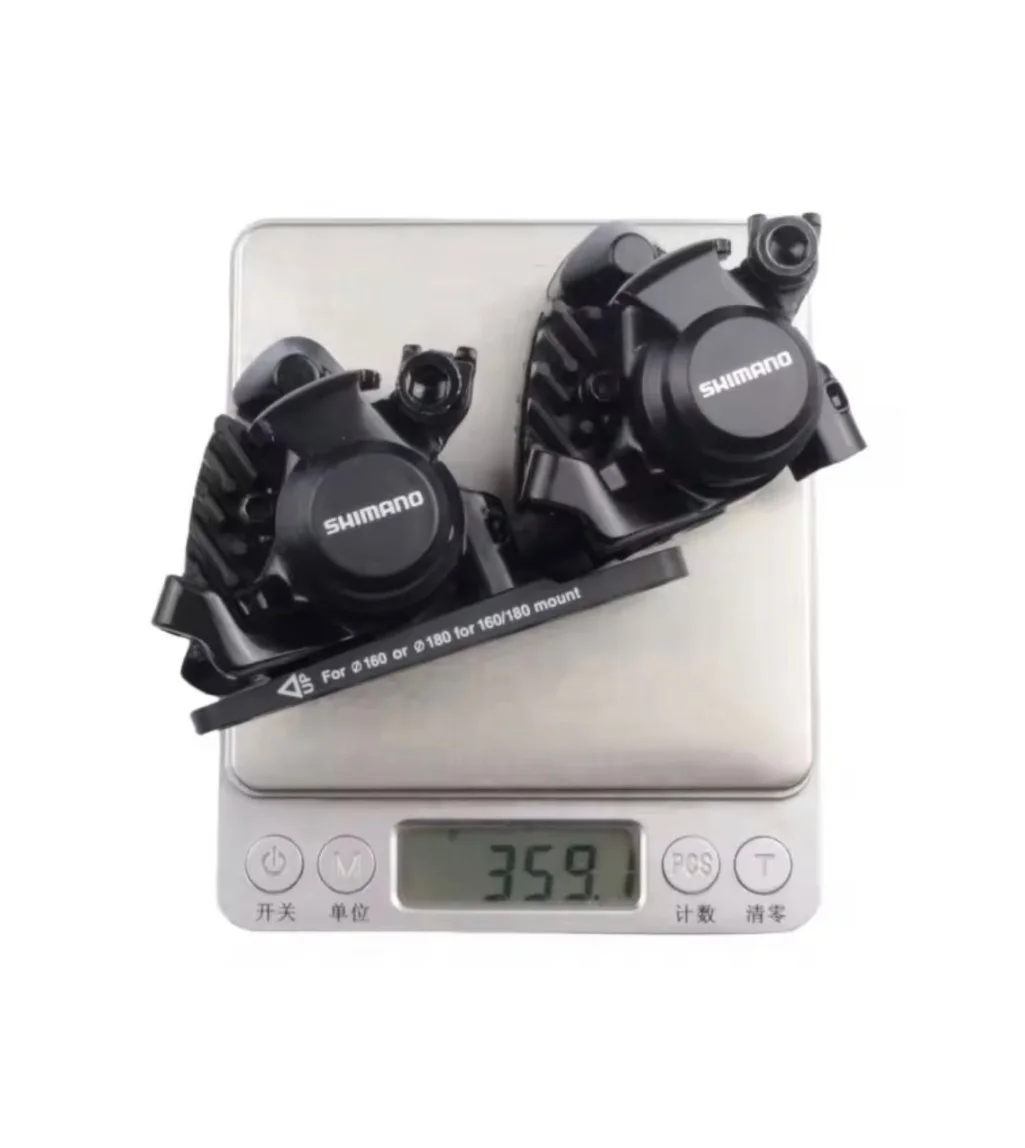

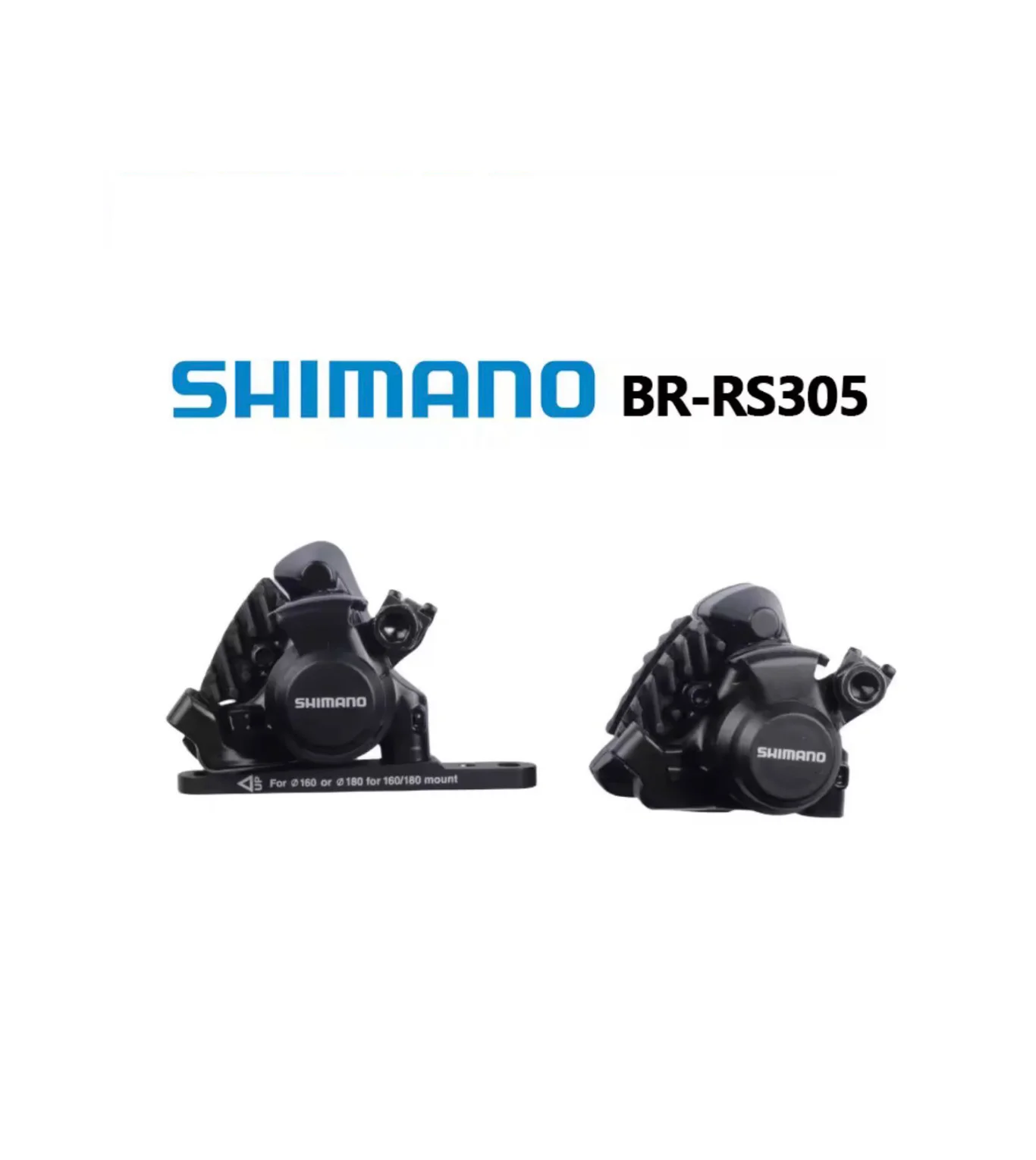

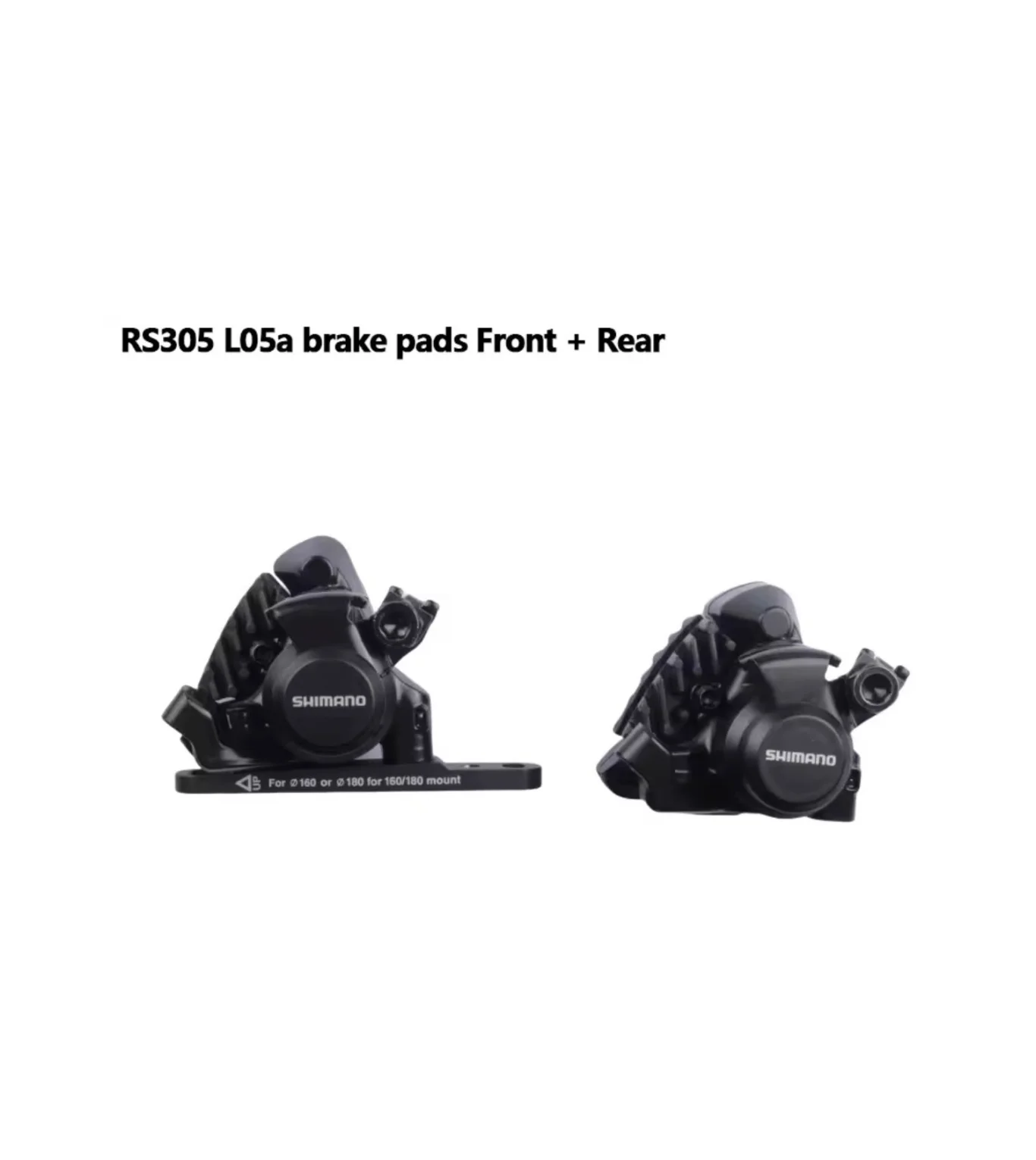

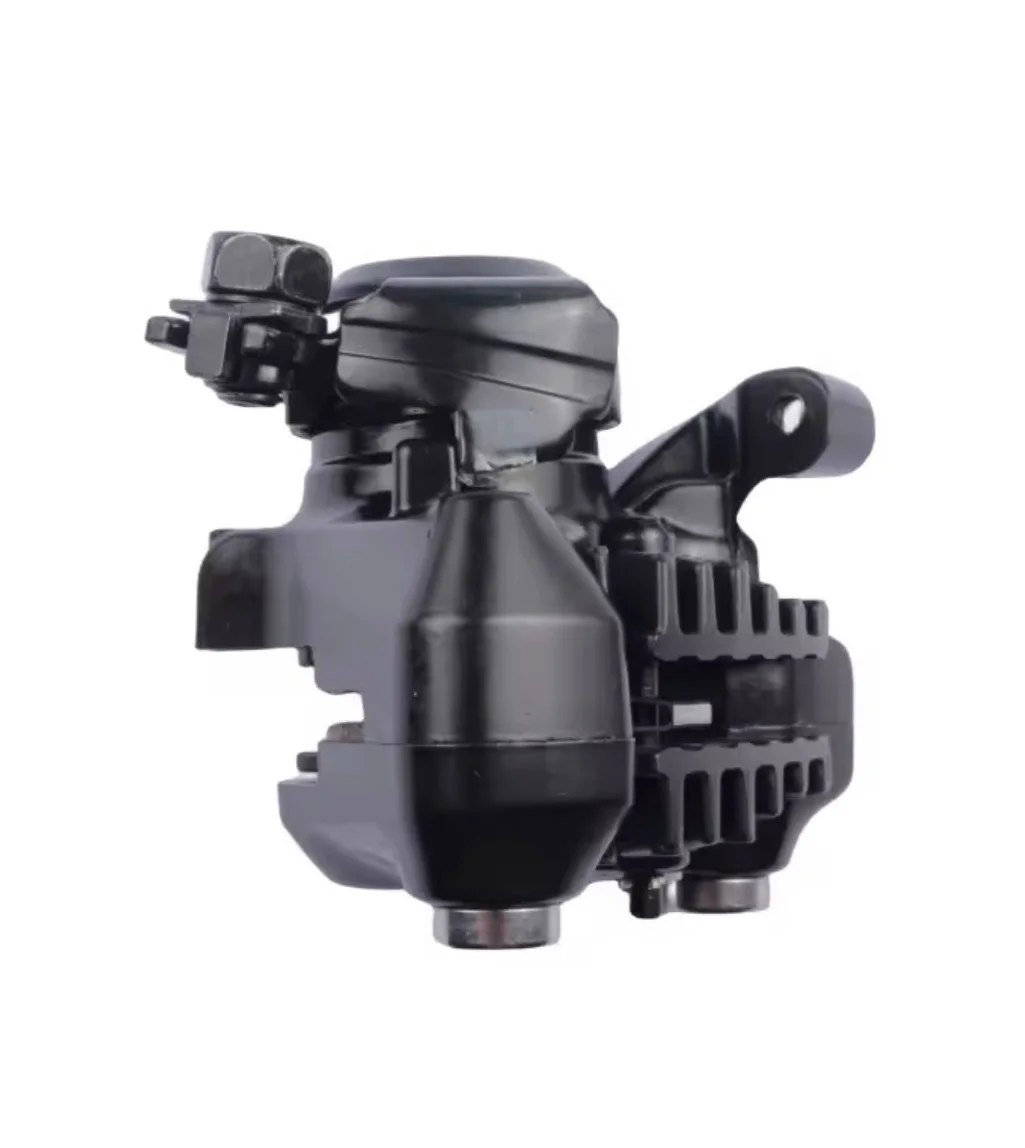

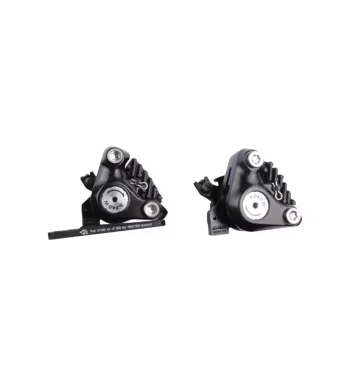

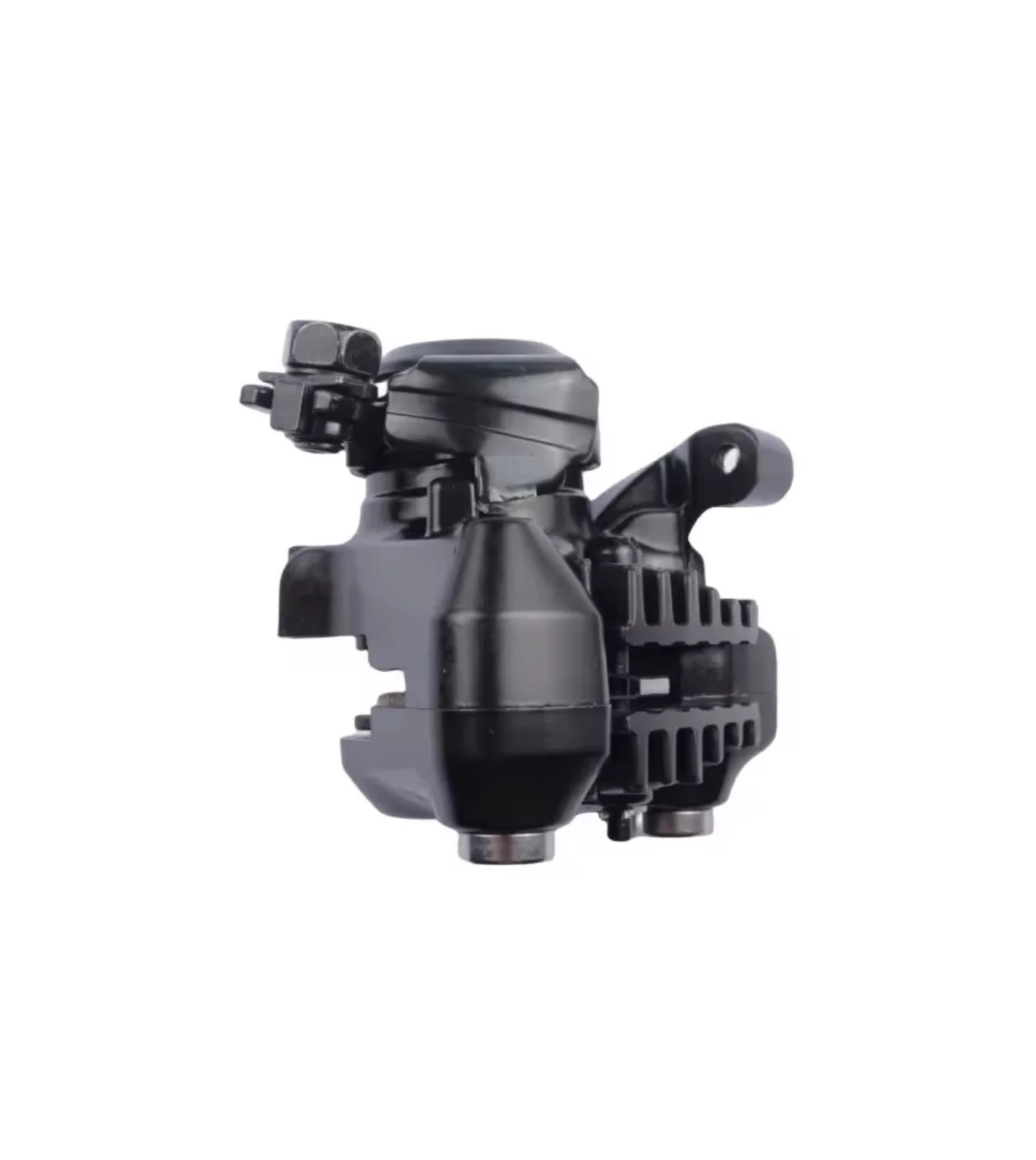

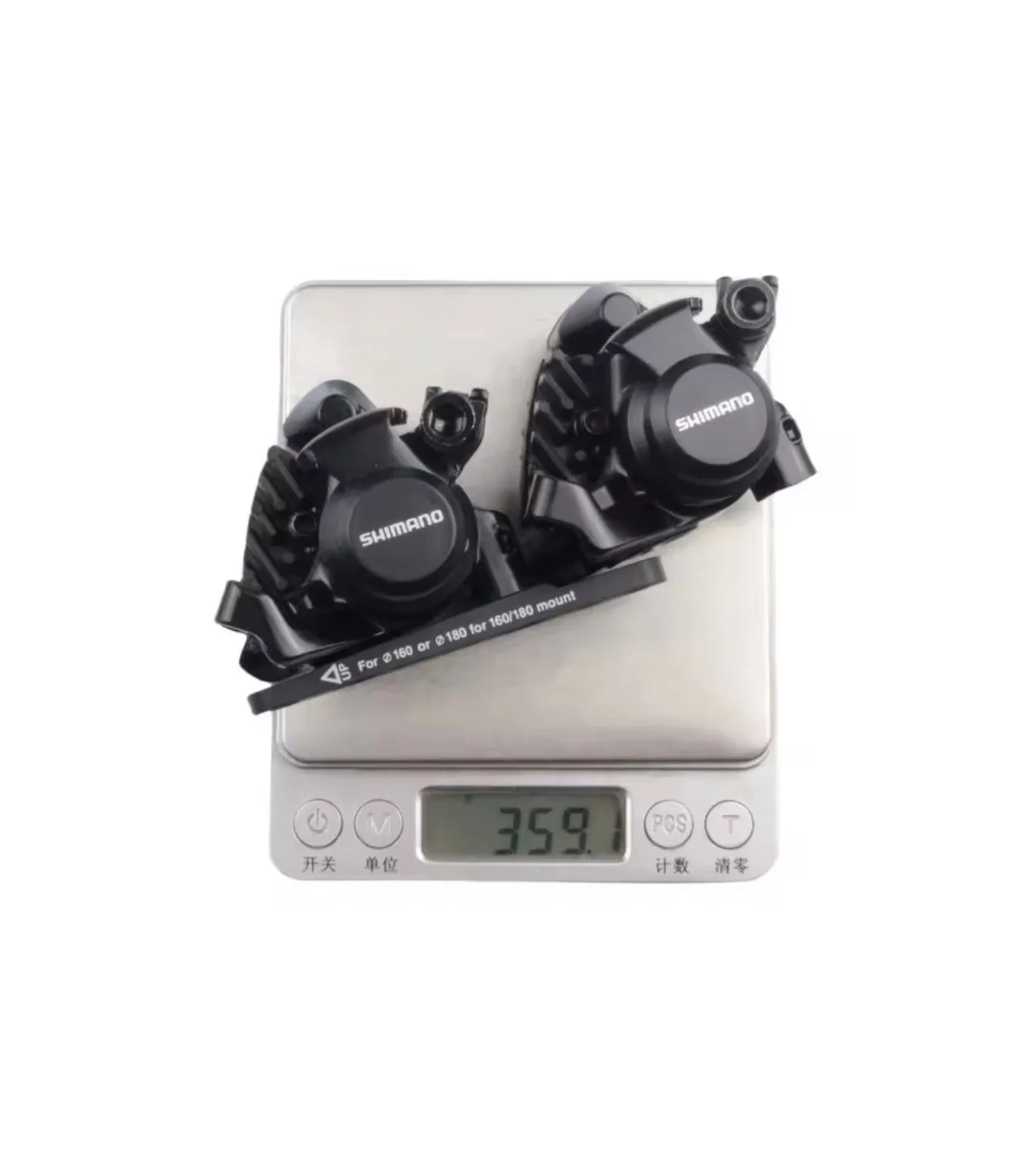

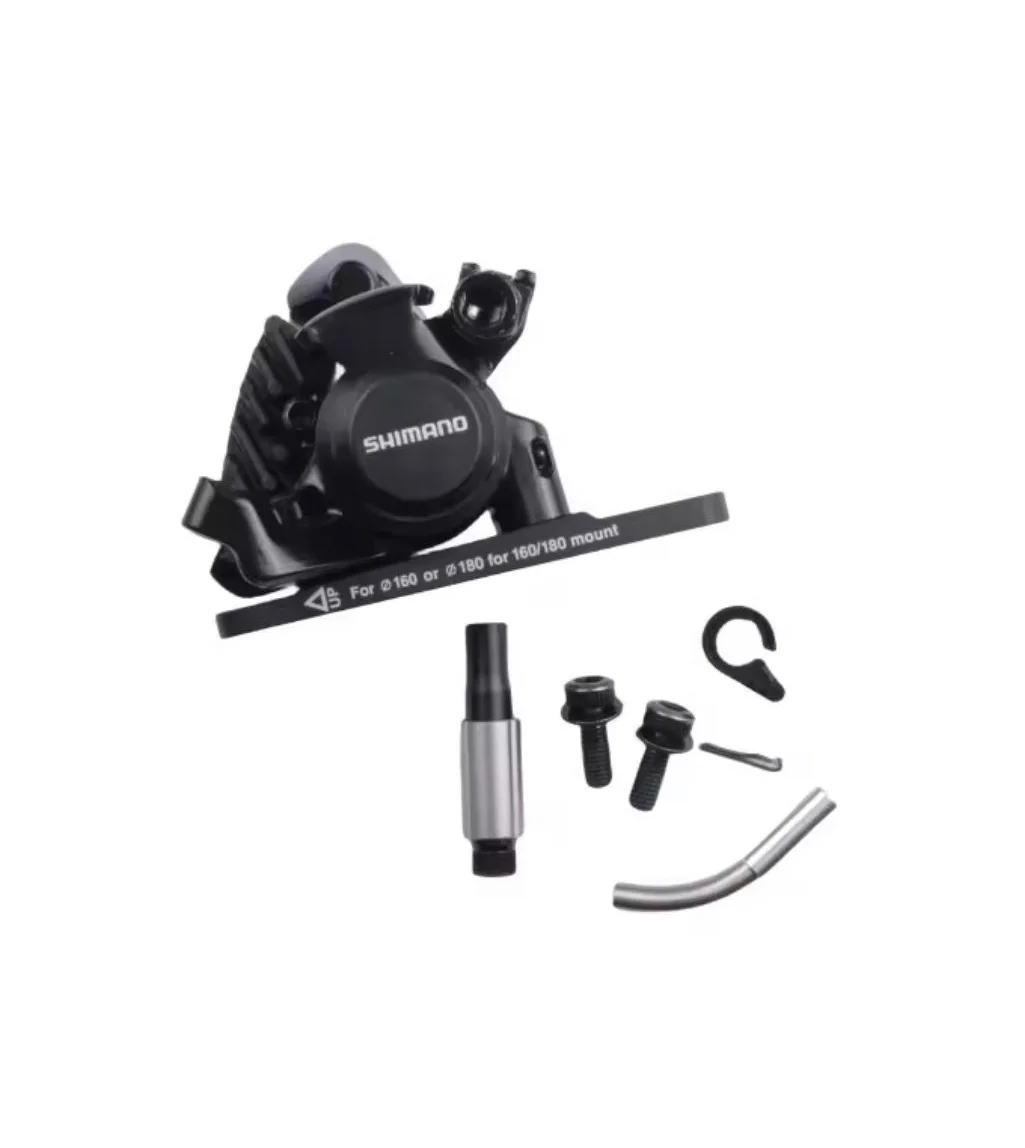

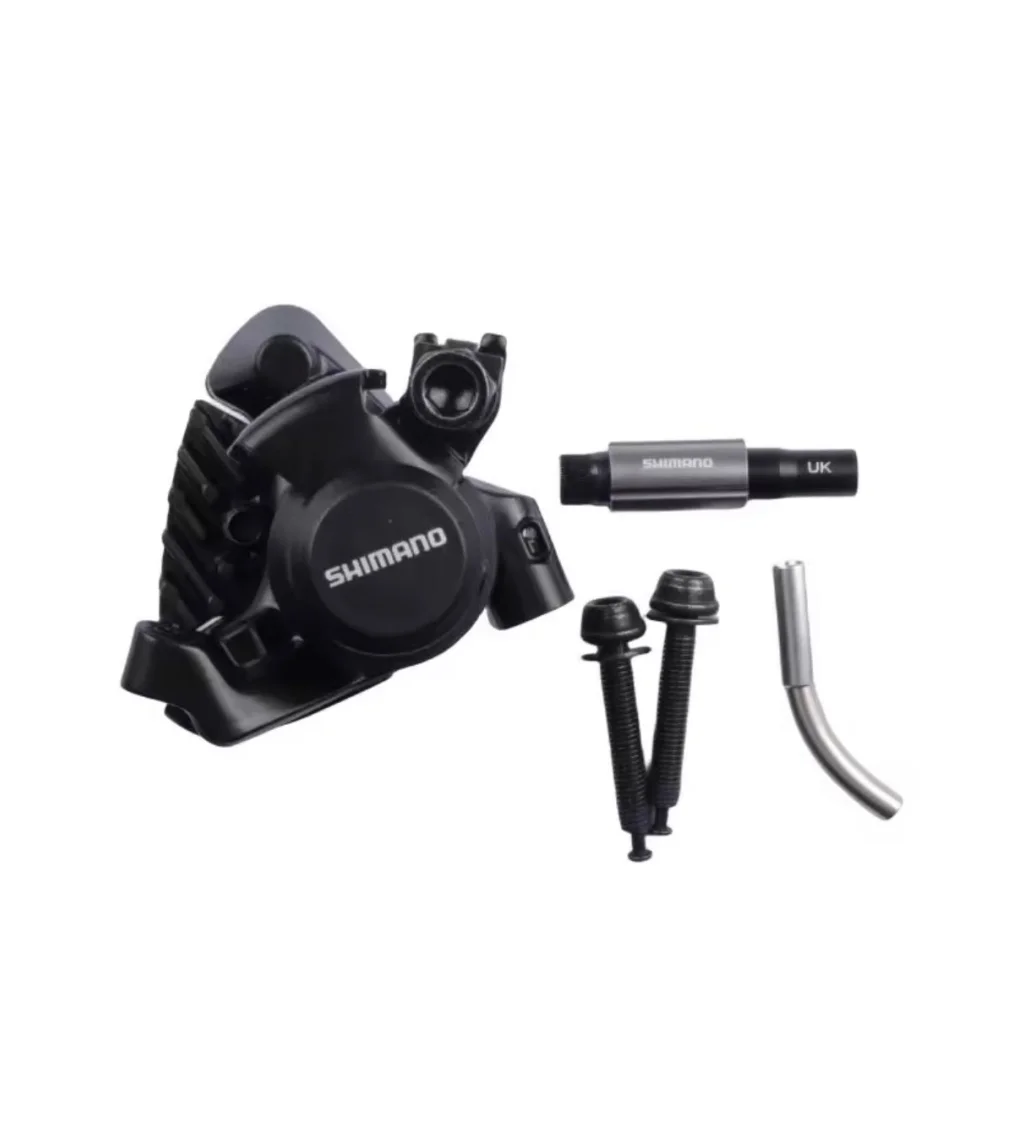

Model BR-RS305

Series SHIMANO

Color black

Remarks SHIMANO

Brake type Mechanical disc brake

Compatibility NEW SUPER SLR

Clamp compatible with ICE-TECHNOLOGIES splint ✔

Brake clamp plate | Standard 1 K05S-RX resin (without heat sink)

Brake clamp plate | Option 1 L05A-RF resin (with heat sink)

Suggested disc brake discs SM-RT54/RT56 (160 mm), SM-RT70 (140 mm/160 mm)

Support type flat installation

Piston 1

Fixing screw for clamp | Tool size 4mm

Clamp fixing screw

Clamping plate installation Clamping plate shaft

MODEL NO: BR-RS305-R  BR-RS305-F

SERIES: SHIMANO

Color: Black

Remarks: SHIMANO

Brake type: Mechanical disc brake

Compatibility: NEW SUPER SLR

ICE TECHNOLOGIES pad compatible caliper: ✔

Pad|Standard 1: K05S-RX Resin (w/o fin)

Pad|Option 1: L05A-RF Resin (w/ fin)

Fixing screw spec for rear mount|10 mm mount: ✔

Fixing screw spec for rear mount|15 mm mount: ✔

Fixing screw spec for rear mount|20 mm mount: ✔

Fixing screw spec for rear mount|25 mm mount: ✔

Fixing screw spec for rear mount|30 mm mount: ✔
