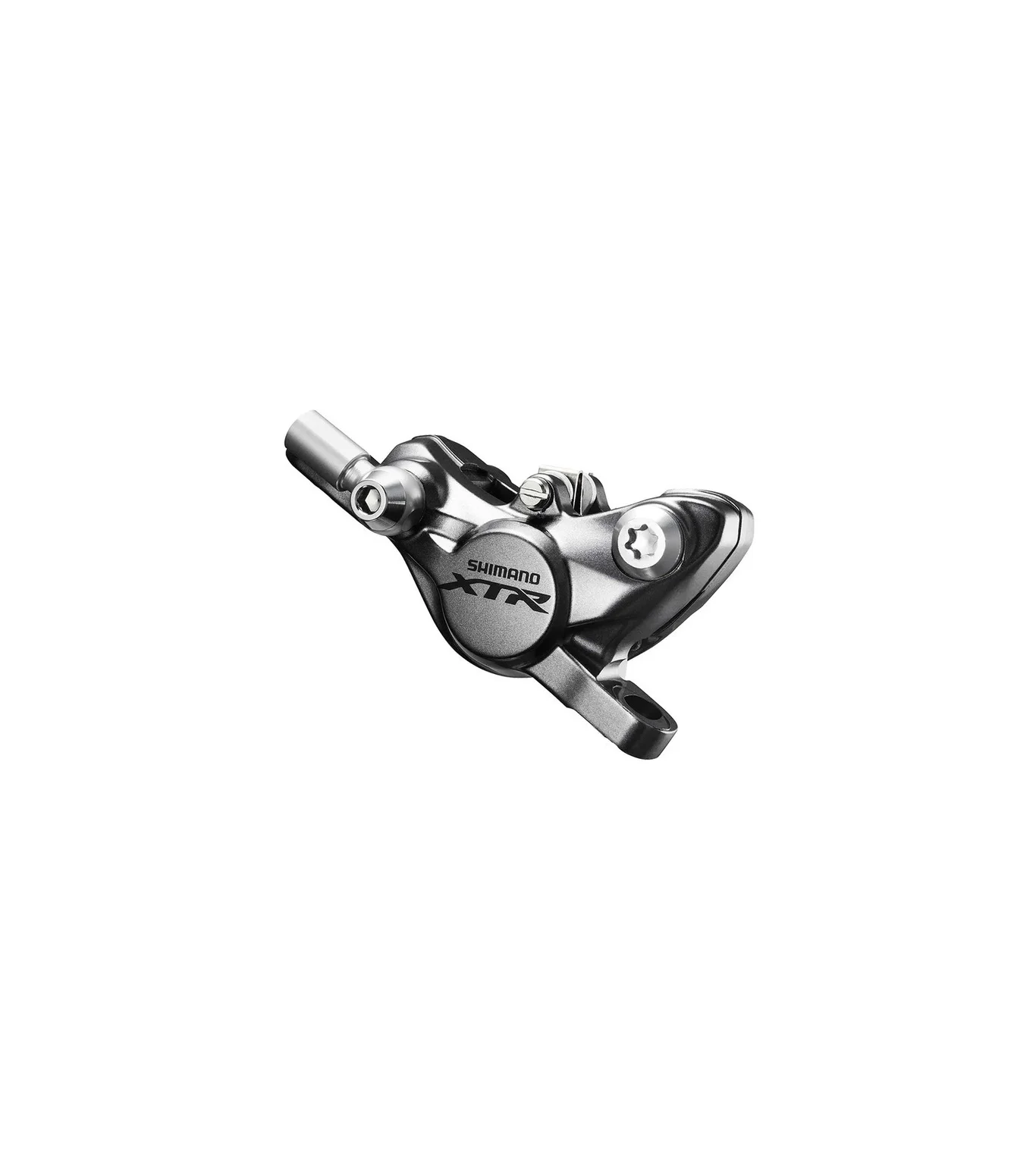

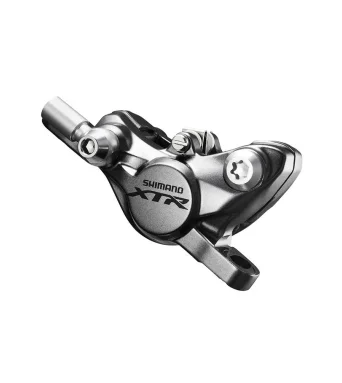

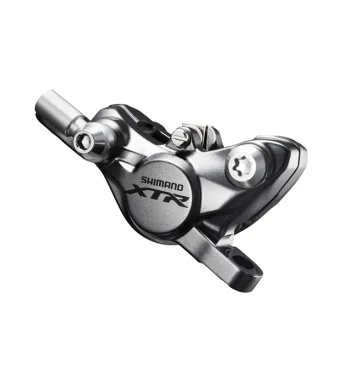

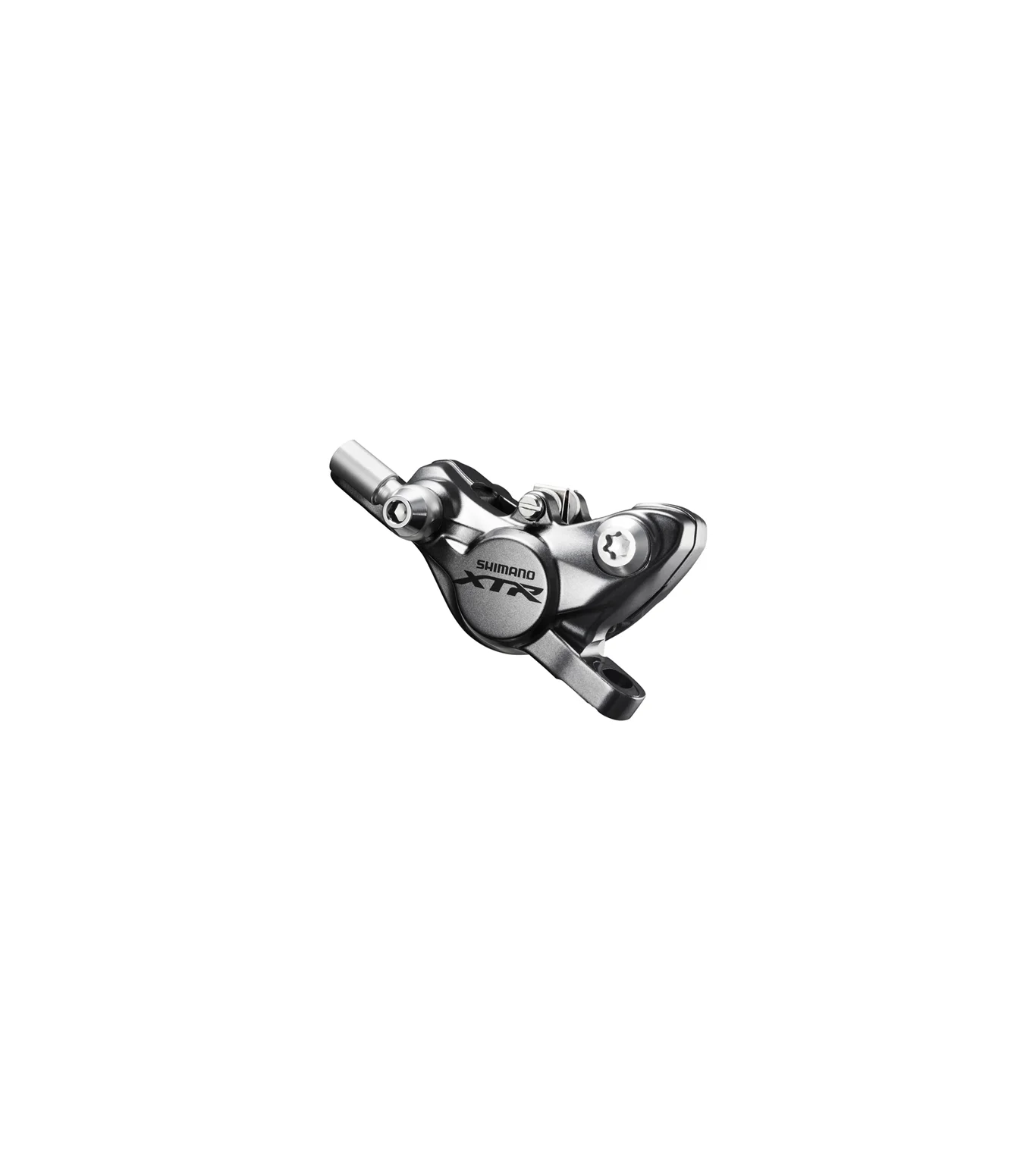

The Shimano XTR Race BR-M9000 brake caliper was designed for Cross Country use, as it optimises the ratio between low weight and high performance. It is made of painted magnesium and comes with titanium bolts. Ice Technology ensures perfect heat control and a consistently high braking performance, which can also be modulated perfectly. Of course, this caliper also has the One Way Bleeding design, which simplifies bleeding. BR-M9000 has two ceramic pistons, a banjo line connection and is supplied with organic pads without cooling fins.

Specifications:

Series:

XTR M9000

Application:

Cross Country

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH90-SBM (not included)

Technical Information:

Mount:

post mount

Pads:

resin

Design:

2-piece

Calliper Material:

magnesium

Piston Material:

Ceramic

Hose Connection:

banjo

Compatibility:

Mounting Position:

front or rear wheel

Brake Rotor:

140 mm (rear only), 160 mm, 180 mm, 203 mm (recommended: SM-RT99, SM-RT99-A)

Pads:

Standard and Ice-Tech brake pads

Recommended Brake Lever:

BL-M9000

Features:

• optimised for racing use (like M987)
• weight-minimising design
• improved modulation and controllability
• different levels of heat control
• can be mounted front and rear
• ceramic piston
• painted
• titanium bolts (4 mm)

Technology:

Manufacturer Number:

Contents:

• 1 x Shimano XTR BR-M9000 brake calliper
• 1 x pair Shimano brake pads with spring
• 2 x calliper bolts
• 1 x Shimano Y-8LF98030 banjo bolt
• 1 x pad retaining bolts
• 1 x safety wire
